Tile pavement or Lath pavement is possible with either placing auxiliary equipments or joint strips/carcass assembly equipments on top pedestal unit’s holes and adjustable gaps.
CODE: HEAD
Coupler must be used when system is longer than 180 mm. These auxiliary parts can be applied more than one at the same unit. Electirical lines and water lines can be attached easily on the units. This system gives technical benefits and clear transportation.
CODE: T-C
Extruding lock is usually used in high grades. This equipment avoids adjusment corruptions caused by long run vibrations.
CODE: T-L
There is no need to stabilize the bottom pedestal on the surface due to its broad diameter. Still there are number of gaps for making unit stable if desired. Corner and edge details have trim lines to solve distance problems. Bottom edges have bevels to give smooth touch on insulation.
CODE: BASE
Slope corrector, working with bottom pedestal, avoids pressures of drain slopes on plates. Slope corrector can tolerate an degree of angles. Alternatives of 1% and 2% available
CODE: T-SC
Made from EPDM, orthopedics floor pad can absorb vibration caused from rough surfaces.
CODE: T-P
The safety level release button on the top pedestal unit or coupler ensure that the pedestal is used in the safe height le- vel in the application phase. In this way, the pedestal is used in accordance with the standards and the safety of the users is ensured.
Adjustable TOKOZ works with lifting jack principal and applied as a one whole piece in corners and edges. Regarding to this point costs reduce.
| Paving Size | m2/pcs |
|---|---|
| 30 x 30 cm | 13,80 |
| 40 x 40 cm | 7,80 |
| 30 x 60 cm | 6,70 |
| 40 x 60 cm | 5,20 |
| 50 x 50 cm | 5,00 |
| 60 x 60 cm | 3,50 |
Joint strips have a selection of 2, 4, 6 and 8mm thickness alternatives and it is 360 degrees turnable. Besides these products (16mm of height standard), there is also a 38mm height and 4mm thickness alternative is available.
Accuracy gasket, made from EPDM, has 1mm and 2mm thickness alternatives and made for avoiding calibration problems of tile pavements. It is placed between coating and plates which helps to absorb vibration. It is recommended to use with every plate modules. They can be divided in 4 smaller pieces.
Her ayak modülünde kullanılması tavsiye edilir. Ürünler 4 parçaya bölünebilmektedir.

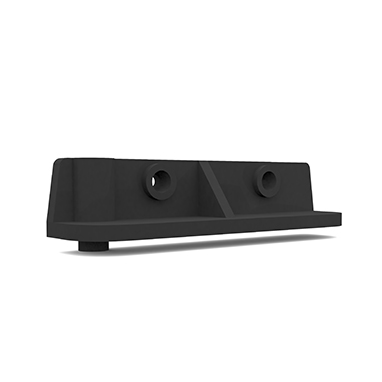

Firstly, regarding to anticipated distance in terms of reference, Carcass Assembly Equipment is assembled on carcass with auxiliary screws. Secondly, it is put on the center of pedestal with carcass (Push-on system). It is possible to use all measurments of carcass for this system, even 1cm!
This type of carcass assembly equipment is put in every point on pedestal except central point. It should be sitting face to face. It can also can turn 360 degrees. Gaps from side walls are making enough space for screws. From 1 cm to 10 cm of carcass can be fitted on this type of equipment.
Slope Correctors, sit under bottom pedestal, avoids all impacts from drain slopes. 1% and 2% alternatives are available. Slope correctors can be applied either one over another or turnable to get perfect gap angles.
Made of natural rubber material, orthopedic floor pad helps to absorb all impact vibrations caused by bumpy surfaces. Thickness is 5mm.
